| PH1200WS-1116 – 300mm Single Wafer Shipper |
 |
Features and Benefits
Through our line of single wafer shippers, we protect and safely transport single
wafers from manufacturer to point of use. Our expertise in polymer product
manufacturing and critical device packaging enables us to provide fast delivery of
high quality products at competitive prices.
• Protects 300mm single wafers during transport and for storage
• Easy to clean due to less internal components.
• Seal Gasket for a secure closure and less contamination
• Very low outgassing Polycarbonate material
• Precision Micro Clean cleaning delivers a cleaner part |
| Part Number: PM600WS-0615 |
 |
Through our line of single wafer shippers, we protect and safely transport single
wafers from manufacturer to point of use. Our single wafer shippers are ideal for
prime or processed wafers. Our expertise in polymer product manufacturing and
critical device packaging enables us to provide fast delivery of high quality
products at competitive prices.
Features and Benefits
• single wafer packaging
• For shipping and storage applications
• Securely positions and protects one wafer face up or face down with minimal
wafer contact
• Fab qualified polypropylene material has low outgassing characteristics and
excellent impact strength |
• Convenient tweezer slot locations provide excellent access for insertion or removal of wafers
• Compact and stackable
• Long life living hinge design for durability
• Single latch design allows for easy open and close
• Lower and upper wafer supports are replaceable and securely retain the wafer to minimize particle
generation
• Upper and lower supports can be colored for identification purposes
• Overall size: 162mm x 161.5mm x 20mm |
| CR100C-APA Elegan 100mm Wafer Carrier |
  |
Features and Benefits
Capacity: 25
Overall Size: 125mm (4.92in) x 142mm (5.59in) x 114mm (4.49in)
D1 Dimension – distance from the H-shaped end surface to the center line
of the first pocket (SEMI Std): 13.97mm (0.55in)
Pocket Spacing – The distance between pocket center lines: 4.76mm (0.19in)
Pocket Flat – The width of the pocket at its narrowest distance: 1.52mm (0.06in)
• H-shaped end for equipment interface
• U-shaped end wall
• Wash slots in side walls
• Precision Micro Clean cleaning delivers a cleaner part
• PA72-40MB equivalent
Material Description
Anti Static Elegan Polypropylene |

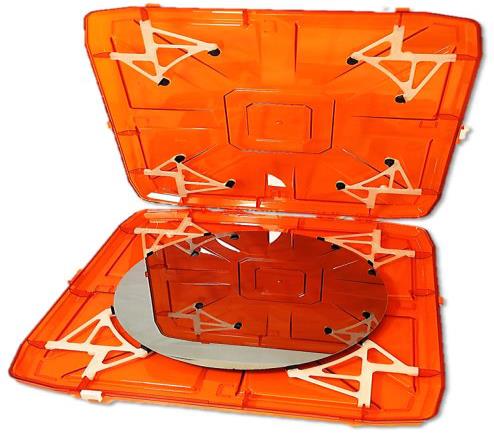

| PL1400-2300FF – 300mm Film Frame Shipper |
 |
Features and Benefits
The ABS three monomer system yields a good balance of properties. Styrene
contributes ease of processing characteristics, acrylonitrile imparts chemical
resistance and increased surface hardness, and the butadiene contributes impact
strength and overall toughness.When a dissipative thermoplastic polymer is
blended with ABS, an Inherently Dissipative Polymer (IDP)is created that forms a
molecular-scale network that carries charge. The resulting IDP provides a
dissipation path throughout the photomask compact. We offer photomask
compacts in ABS IDP’s to customers who need excellent ESD properties that
include low Tribocharge results and good surface resistivity. |
• Protects 300mm Film Frame
• Minimal contact with the Film Frame
• Easy open and close slide latches secure the film frame and diced wafer while generating fewer particles
• Low outgassing HDPE latches
• Positive locking snap fit hinge. No lateral movement generates fewer particles |
| H22-60 Coin Style Individual Wafer Shipper |
 |
Features and Benefits
Anti-Static Polypropylene. Dissipative thermoplastic polymer blended with
Polypropylene.
• Coin style single wafer shipper
• Available in standard translucent and conductive polypropylene.
• Precision Micro Clean cleaning delivers a cleaner part |

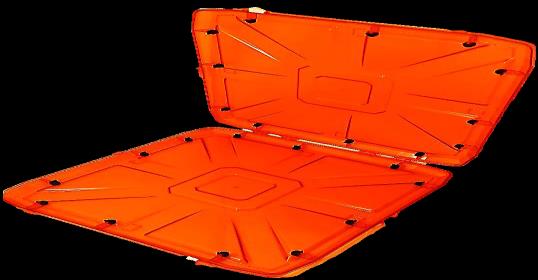

| PL1400-20019L – 14" x 14" x .190" |
  |
Features and Benefits
The ABS three monomer system yields a good balance of properties. Styrene
contributes ease of processing characteristics, acrylonitrile imparts chemical
resistance and increased surface hardness, and the butadiene contributes impact
strength and overall toughness.When a dissipative thermoplastic polymer is
blended with ABS, an Inherently Dissipative Polymer (IDP) is created that forms a
molecular-scale network that carries charge. The resulting IDP provides a
dissipation path throughout the photomask compact. We offer photomask
compacts in ABS IDP’s to customers who need excellent ESD properties that
include low tribocharge results and good surface resistivity.
• Protects 14” x 14” masks
• Minimal contact with the photomask
• Customizable to non-standard substrate thicknesses
• Easy open and close slide latches secure the photomask and generate fewer particles
• Low outgassing HDPE latches
• Positive locking snap fit hinge. No lateral movement generates fewer particles
• Precision Micro Clean cleaning delivers a cleaner part |

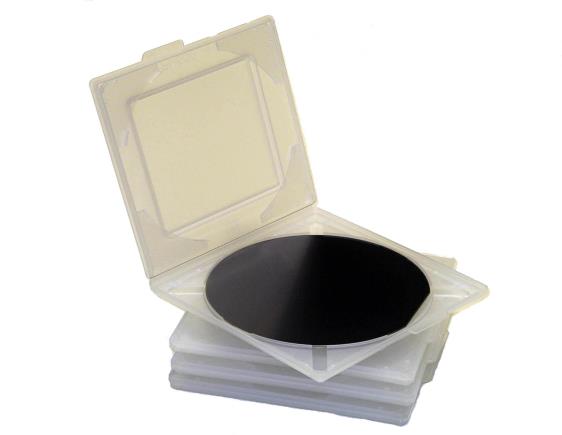

| 150mm Single Wafer Shipper PM600WS-62C02 |
 |
Features and Benefits
Through our line of single wafer shippers, we protect and safely transport single
wafers frommanufacturer to point of use. Our single wafer shippers are ideal for
prime or processed wafers. Our expertise in polymer product manufacturing and
critical device packaging enables us to provide fast delivery of high quality
products at competitive prices. The Black Polycarbonate protects against ESD
damage and shields the wafer from light exposure
• Black Polycarbonate provides ESD protection
• Securely positions and protects one wafer face up or face down with minimal
contact.
• Convenient tweezers slot locations provide excellent access for insertion or
removal of wafers
• Compact and stackable
• Single latch design allows for easy open and close
• White Wafer cushions provide a visual for placement and securely retain the
wafer to minimize particle generation.
• Overall size: 162mm x 161.5mm x 20mm |
| PH800WS-1116 – 200mm Single Wafer Shipper |
  |
Through our line of single wafer shippers, we protect and safely transport single
wafers from manufacturer to point of use. Our expertise in polymer product
manufacturing and critical device packaging enables us to provide fast delivery of
high quality products at competitive prices.
Features and Benefits
• Protects 200mm single wafers during transport and for storage
• Overall size 226mm x 213mm x 20mm
• Compact and stackable
• Very low outgassing Polycarbonate material
• Convenient tweezer slot locations provide excellent access for insertion or
removal of wafers
• Wafer cushions securely retain the wafer to minimize particle generation
• Precision Micro Clean cleaning delivers a cleaner part |
